Tape wound helical antenna

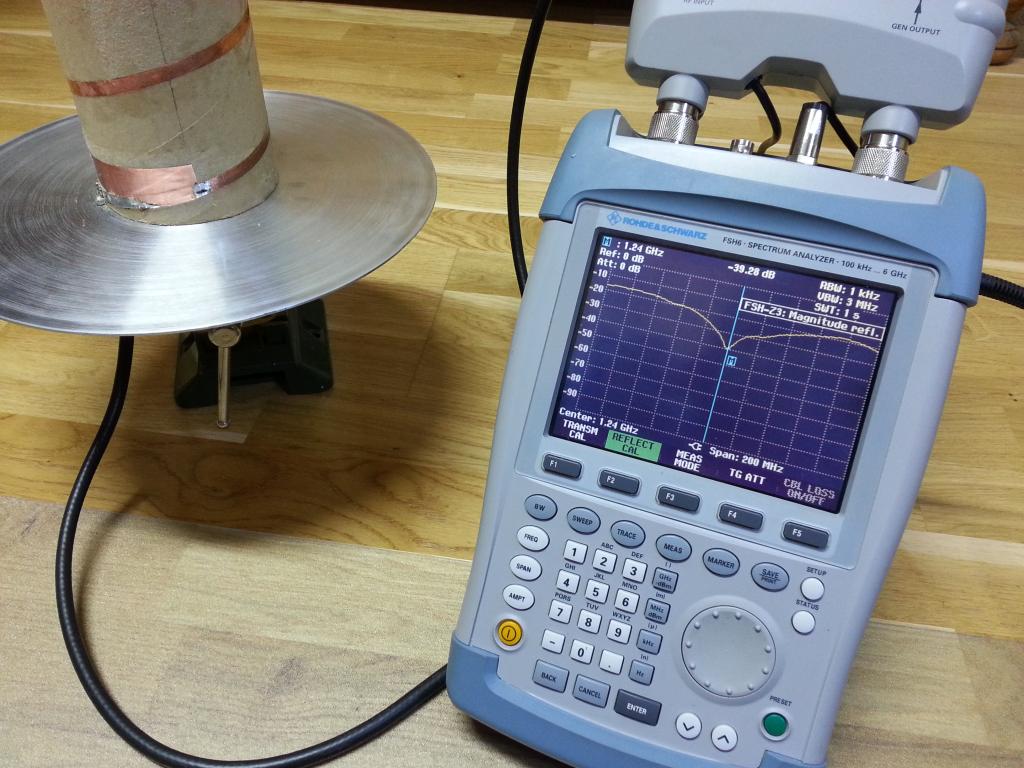

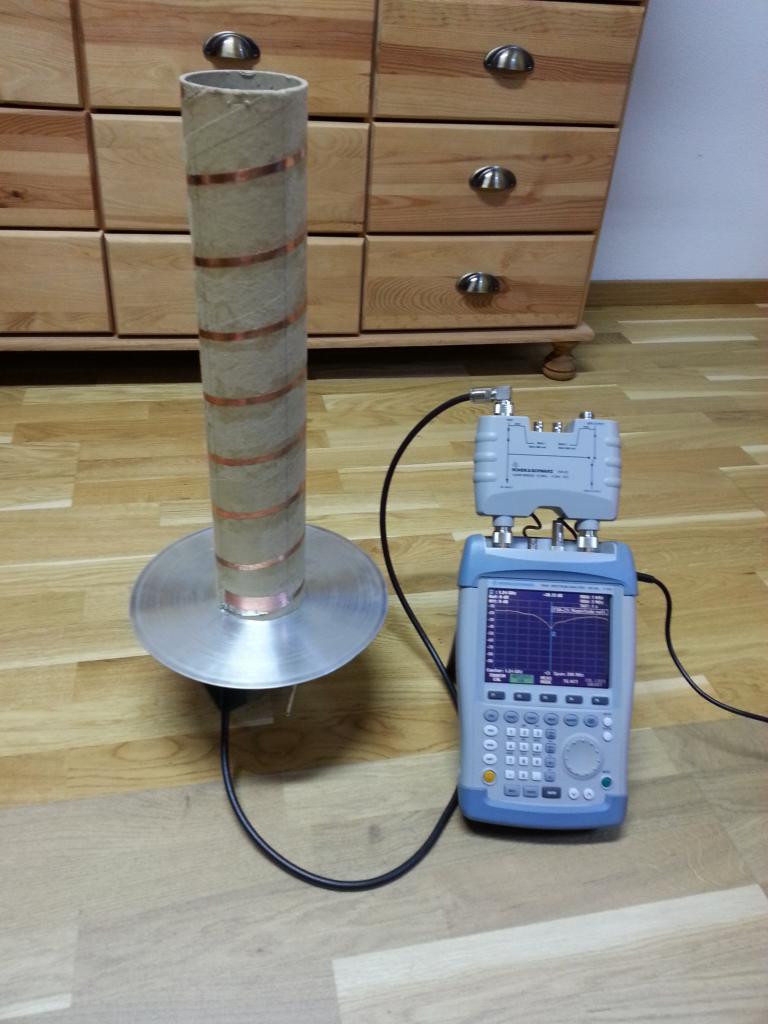

Here is just another way to make a helical antenna. Cheap and easy. Aluminum sheet reflector, cardboard tube and self-adhesive copper tape. Designed and tuned for 1240MHz this helical has 8 turns on a 85mm diameter tube.
![](/img/2014/04/IMG_20140404_201100.jpg)
![](/img/2014/04/IMG_20140404_201137.jpg)
![](/img/2014/04/IMG_20140404_201121.jpg)
